Description

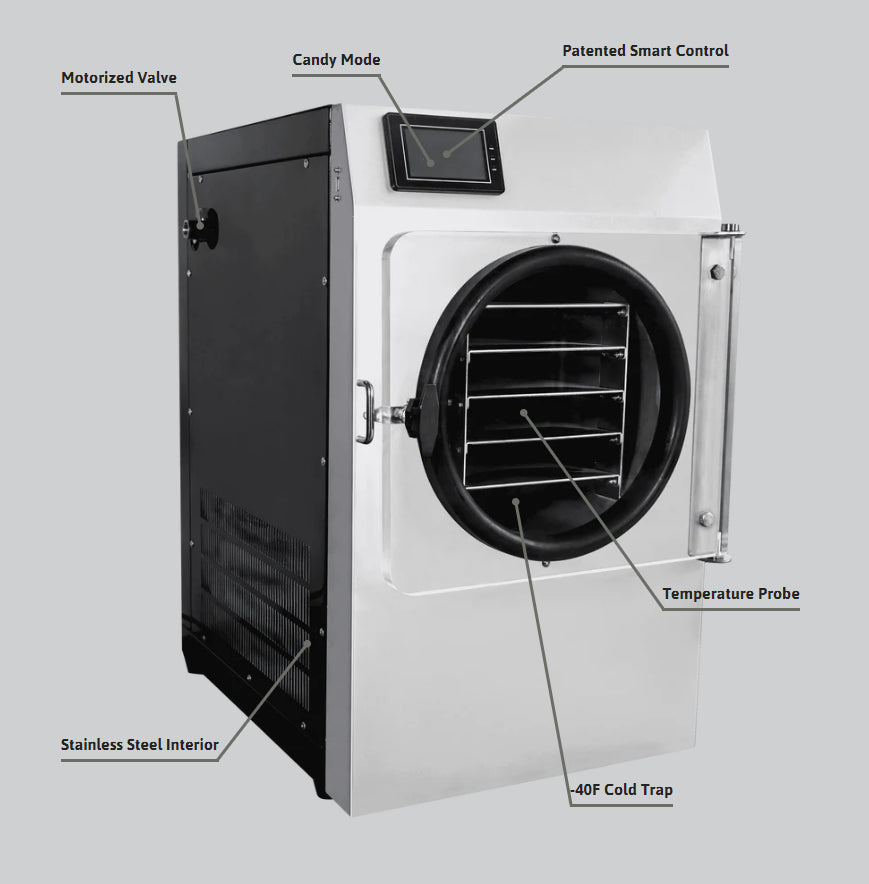

Model features:

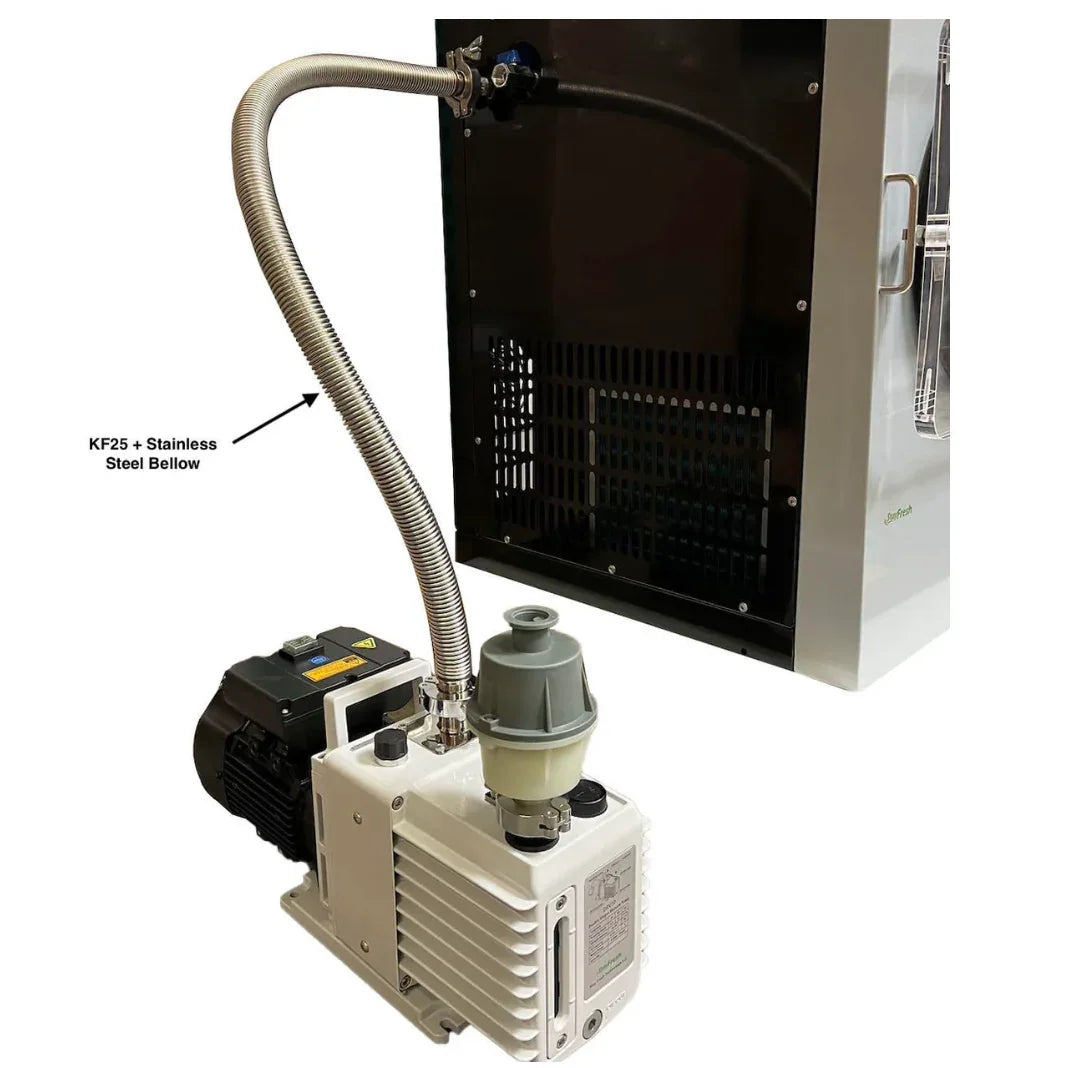

- KF25 stainless steel vacuum hose.
- Patented smart freeze drying algorithm.
- Multiple drying methods for beginners and advanced users.
- Motorized ball valve for oil contamination prevention.
- RTD temperature sensors for drying assistance.
- Industrial grade glass-to-metal seal feed- through.
- Solid state relay for the heater. All replaceable relays.
- Stainless steel/aluminum construction for major parts.
- Independent vacuum valve for pressure normalization.
- Candy mode makes freeze-drying sweets easy and quick.
- Stainless steel drain line.
Model specifications:
- Ice capacity 5.44kg.
- Process up to 8.16kg of food in one batch.
- Main drying time 16 - 30 hours for 3.63kg of food.
- Spacing between shelves 5.08cm.
- Include four trays as one set. Tray size 20.32cm. x 50.80cm. x 1.91cm.
- Shelf temperature setting range -50F to 150F.
- Freeze dryer weighs (vacuum pump excluded) 74.84kg.
- Freeze dryer dimension W 50.8cm. x D 66.04cm. x H 78.74cm.
- Freeze dryer cold trap (bottom of chamber) -40F.

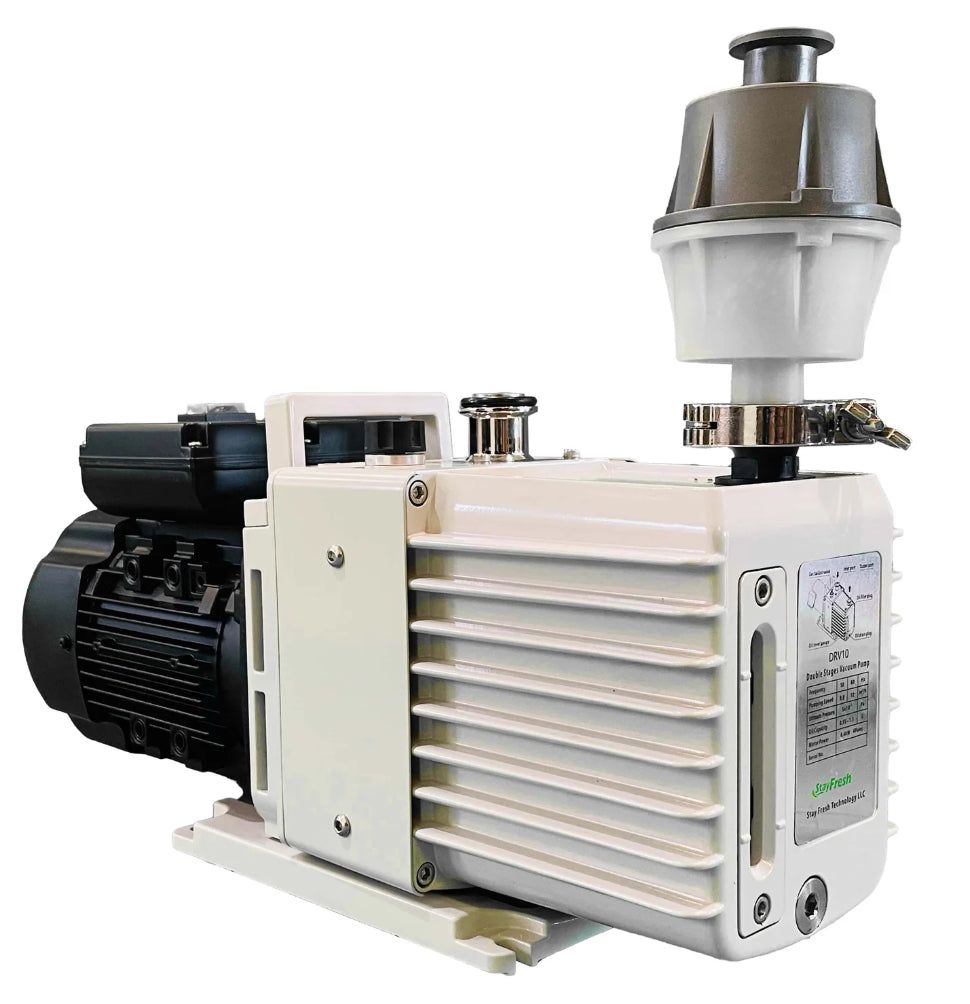

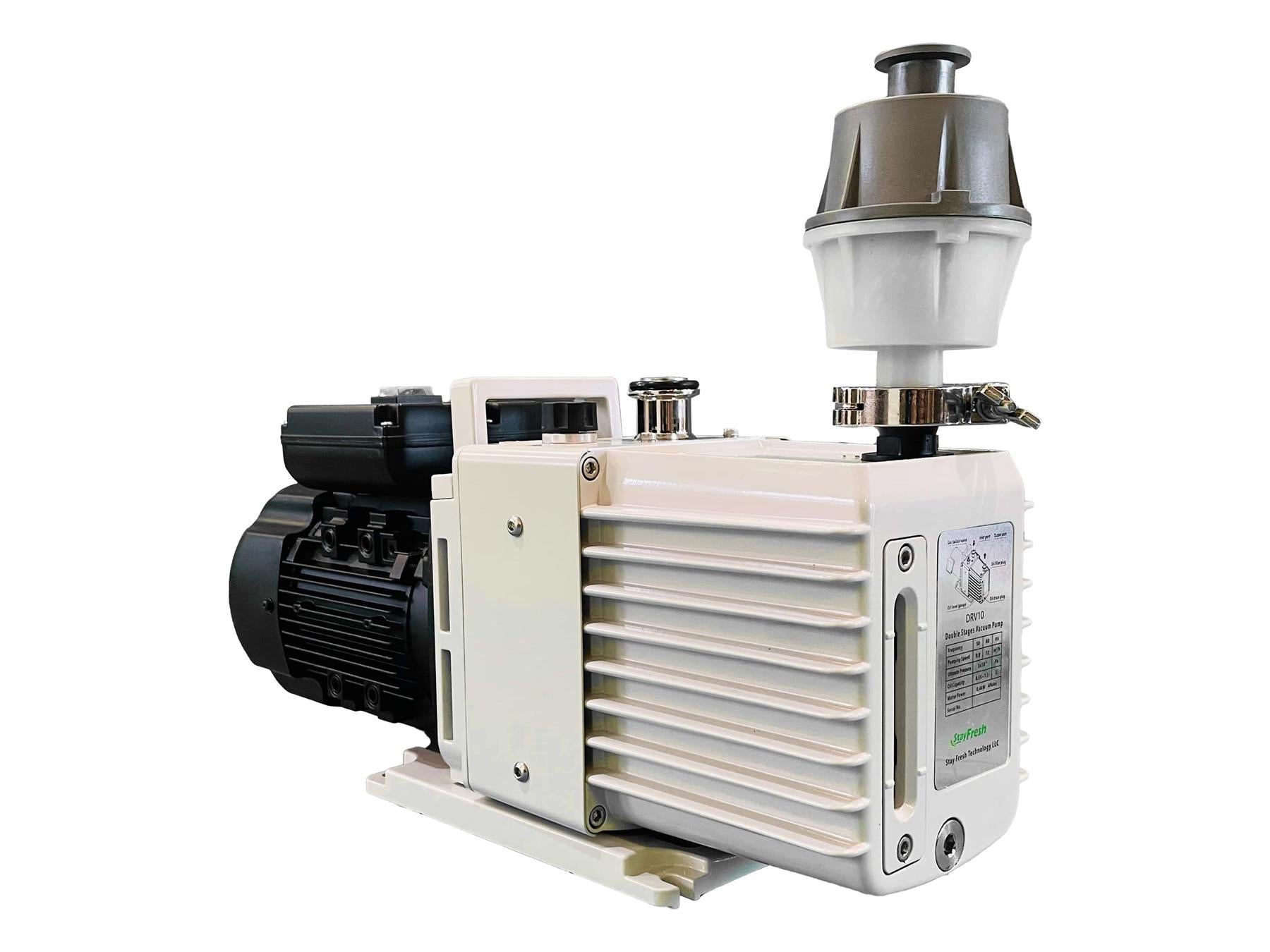

- Vacuum pump weighs 24.95 kg.
- Vacuum pump dimension W 21.59cm. x D 52.07cm. x H 25.40cm.
- Oil mister filter dimension W 10.16cm. x D 10.16cm. x H 15.24cm.
- Vacuum pump flow rate 7.2CFM.
Installation requirement:
- A dedicated 15 Amp circuit is required.
- 16 Amp power cord provided requires matching socket-outlet.
Free Accessories:
- An oil filter, 2 sets of 4 trays, and 50 mylar bags.
Shipping:
- The freeze dryer is shipped in two boxes on a pallet: a 81.19kg freeze dryer box of size 63.5cm x 73.66cm x 91.44cm,
a 27.22kg vacuum pump box, and a 4.54kg accessory box. The pallet size 106.68cm x 73.66cm x 104.14cm. The entire shipment weighs about 122.47kg.
